AWS CDK (Python)- How to Configure VPC, Subnets, Internet gateway, NatGateway

Posted byRamasankarPosted inAnsible, AWS, AWS CDKTags:

So far, i’ve discussed about how to configure vpc, subnets, natgateway, ec2 using terraform, in this post i’m going to discuss how to configure VPC, Subnets, Internet Gateway, NatGateway with AWS CDK using python as language. We don’t need to write any complex cloudformation scripts, we use AWS CDK to construct resources. For more information about AWS CDK, you may check here.

Pre-requisites:

You need to install aws cdk and python installed on your environment.

#Install AWS-CDK
npm install -g aws-cdk
# Check CDK Version
cdk --version

Once, you have aws cdk and python installed we can initialize new project. I’m using visual studio code in my example to create project, you can use any of your favorite IDE.

mkdir mycdkproject
cdk init --language python

The above will create a cdk structure with python as language. Activate your virtual environment source .env/bin/activate or python -m venv .venv depending on your OS (Linux/MaC/Windows). Once you initialized then the structure would look like this

We have cdk structure ready, let us start importing required modules (aws_ec2, aws_ssm, core)

edit the requirements.txt file (

aws-cdk.core
aws-cdk.aws-ssm
aws-cdk.aws-ec2) and install them using python install -r requirements.txt

This will ensure you have required modules to start with.

Let us modify the mycdkproject_stack.py.

from aws_cdk import (
     aws_ec2 as ec2,
     aws_ssm as ssm,
     core
)


class MycdkprojectStack(core.Stack):

    def __init__(self, scope: core.Construct, construct_id: str, **kwargs) -> None:
        super().__init__(scope, construct_id, **kwargs)

        # The code that defines your stack goes here
        env_name = self.node.try_get_context("env")

        self.vpc = ec2.Vpc(self, 'demovpc',
            cidr = '192.168.50.0/24',
            max_azs = 2,
            enable_dns_hostnames = True,
            enable_dns_support = True,
            subnet_configuration=[
                ec2.SubnetConfiguration(
                    name = 'Public-Subent',
                    subnet_type = ec2.SubnetType.PUBLIC,
                    cidr_mask = 26
                ),
                ec2.SubnetConfiguration(
                    name = 'Private-Subnet',
                    subnet_type = ec2.SubnetType.PRIVATE,
                    cidr_mask = 26
                )
            ],
            nat_gateways = 1,

        )
        priv_subnets = [subnet.subnet_id for subnet in self.vpc.private_subnets]

        count = 1
        for psub in priv_subnets:
            ssm.StringParameter(self, 'private-subnet-'+ str(count),
                string_value = psub,
                parameter_name = '/'+env_name+'/private-subnet-'+str(count)
                )
            count += 1

The above script will create vpc, public, private subnets and nategateway.

Call this stack into your app.py as below

#!/usr/bin/env python3

from aws_cdk import core

from mycdkproject.mycdkproject_stack import MycdkprojectStack

app = core.App()
MycdkprojectStack(app, "mycdkproject")

app.synth()

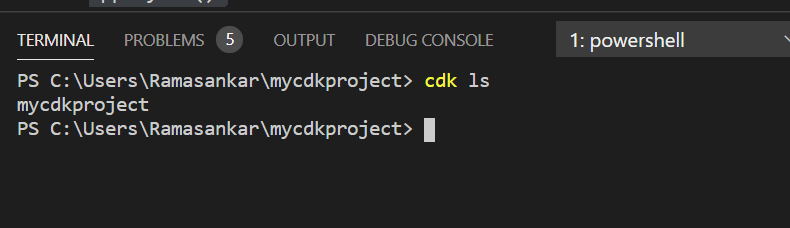

let us run cdk ls to see if there any list of stacks

cdk ls

Synthesize an AWS CloudFormation template for the app, as follows.

cdk synth

If your app contained more than one stack, you’d need to specify which stack(s) to synthesize. But since it only contains one, the Toolkit knows you must mean that one.

The cdk synth command executes your app, which causes the resources defined in it to be translated to an AWS CloudFormation template. The displayed output of cdk synth is a YAML-format template; our app’s output is shown below. The template is also saved in the cdk.out directory in JSON format.

PS C:\Users\Ramasankar\mycdkproject> cdk synth
Resources:
  demovpcF2DCF540:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: 192.168.50.0/24
      EnableDnsHostnames: true
      EnableDnsSupport: true
      InstanceTenancy: default
      Tags:
        - Key: Name
          Value: mycdkproject/demovpc
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Resource
  demovpcPublicSubentSubnet1Subnet9D54A554:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: 192.168.50.0/26
      VpcId:
        Ref: demovpcF2DCF540
      AvailabilityZone:
        Fn::Select:
          - 0
          - Fn::GetAZs: ""
      MapPublicIpOnLaunch: true
      Tags:
        - Key: aws-cdk:subnet-name
          Value: Public-Subent
        - Key: aws-cdk:subnet-type
          Value: Public
        - Key: Name
          Value: mycdkproject/demovpc/Public-SubentSubnet1
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Public-SubentSubnet1/Subnet
  demovpcPublicSubentSubnet1RouteTable91CAF0D9:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId:
        Ref: demovpcF2DCF540
      Tags:
        - Key: Name
          Value: mycdkproject/demovpc/Public-SubentSubnet1
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Public-SubentSubnet1/RouteTable
  demovpcPublicSubentSubnet1RouteTableAssociationB046656F:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId:
        Ref: demovpcPublicSubentSubnet1RouteTable91CAF0D9
      SubnetId:
        Ref: demovpcPublicSubentSubnet1Subnet9D54A554
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Public-SubentSubnet1/RouteTableAssociation
  demovpcPublicSubentSubnet1DefaultRouteD441EE14:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId:
        Ref: demovpcPublicSubentSubnet1RouteTable91CAF0D9
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId:
        Ref: demovpcIGW048842AE
    DependsOn:
      - demovpcVPCGW7D2E1CAC
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Public-SubentSubnet1/DefaultRoute
  demovpcPublicSubentSubnet1EIPBD2741E1:
    Type: AWS::EC2::EIP
    Properties:
      Domain: vpc
      Tags:
        - Key: Name
          Value: mycdkproject/demovpc/Public-SubentSubnet1
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Public-SubentSubnet1/EIP
  demovpcPublicSubentSubnet1NATGateway89406216:
    Type: AWS::EC2::NatGateway
    Properties:
      AllocationId:
        Fn::GetAtt:
          - demovpcPublicSubentSubnet1EIPBD2741E1
          - AllocationId
      SubnetId:
        Ref: demovpcPublicSubentSubnet1Subnet9D54A554
      Tags:
        - Key: Name
          Value: mycdkproject/demovpc/Public-SubentSubnet1
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Public-SubentSubnet1/NATGateway
  demovpcPublicSubentSubnet2Subnet1ECEB9DF:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: 192.168.50.64/26
      VpcId:
        Ref: demovpcF2DCF540
      AvailabilityZone:
        Fn::Select:
          - 1
          - Fn::GetAZs: ""
      MapPublicIpOnLaunch: true
      Tags:
        - Key: aws-cdk:subnet-name
          Value: Public-Subent
        - Key: aws-cdk:subnet-type
          Value: Public
        - Key: Name
          Value: mycdkproject/demovpc/Public-SubentSubnet2
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Public-SubentSubnet2/Subnet
  demovpcPublicSubentSubnet2RouteTable859486AD:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId:
        Ref: demovpcF2DCF540
      Tags:
        - Key: Name
          Value: mycdkproject/demovpc/Public-SubentSubnet2
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Public-SubentSubnet2/RouteTable
  demovpcPublicSubentSubnet2RouteTableAssociation4812D27C:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId:
        Ref: demovpcPublicSubentSubnet2RouteTable859486AD
      SubnetId:
        Ref: demovpcPublicSubentSubnet2Subnet1ECEB9DF
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Public-SubentSubnet2/RouteTableAssociation
  demovpcPublicSubentSubnet2DefaultRoute41BC99C2:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId:
        Ref: demovpcPublicSubentSubnet2RouteTable859486AD
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId:
        Ref: demovpcIGW048842AE
    DependsOn:
      - demovpcVPCGW7D2E1CAC
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Public-SubentSubnet2/DefaultRoute
  demovpcPrivateSubnetSubnet1Subnet7F486832:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: 192.168.50.128/26
      VpcId:
        Ref: demovpcF2DCF540
      AvailabilityZone:
        Fn::Select:
          - 0
          - Fn::GetAZs: ""
      MapPublicIpOnLaunch: false
      Tags:
        - Key: aws-cdk:subnet-name
          Value: Private-Subnet
        - Key: aws-cdk:subnet-type
          Value: Private
        - Key: Name
          Value: mycdkproject/demovpc/Private-SubnetSubnet1
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Private-SubnetSubnet1/Subnet
  demovpcPrivateSubnetSubnet1RouteTableDA716B65:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId:
        Ref: demovpcF2DCF540
      Tags:
        - Key: Name
          Value: mycdkproject/demovpc/Private-SubnetSubnet1
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Private-SubnetSubnet1/RouteTable
  demovpcPrivateSubnetSubnet1RouteTableAssociation942BFC16:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId:
        Ref: demovpcPrivateSubnetSubnet1RouteTableDA716B65
      SubnetId:
        Ref: demovpcPrivateSubnetSubnet1Subnet7F486832
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Private-SubnetSubnet1/RouteTableAssociation
  demovpcPrivateSubnetSubnet1DefaultRouteDC8CEC57:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId:
        Ref: demovpcPrivateSubnetSubnet1RouteTableDA716B65
      DestinationCidrBlock: 0.0.0.0/0
      NatGatewayId:
        Ref: demovpcPublicSubentSubnet1NATGateway89406216
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Private-SubnetSubnet1/DefaultRoute
  demovpcPrivateSubnetSubnet2Subnet4FD8659B:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: 192.168.50.192/26
      VpcId:
        Ref: demovpcF2DCF540
      AvailabilityZone:
        Fn::Select:
          - 1
          - Fn::GetAZs: ""
      MapPublicIpOnLaunch: false
      Tags:
        - Key: aws-cdk:subnet-name
          Value: Private-Subnet
        - Key: aws-cdk:subnet-type
          Value: Private
        - Key: Name
          Value: mycdkproject/demovpc/Private-SubnetSubnet2
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Private-SubnetSubnet2/Subnet
  demovpcPrivateSubnetSubnet2RouteTable8983B828:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId:
        Ref: demovpcF2DCF540
      Tags:
        - Key: Name
          Value: mycdkproject/demovpc/Private-SubnetSubnet2
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Private-SubnetSubnet2/RouteTable
  demovpcPrivateSubnetSubnet2RouteTableAssociationDCEDC16A:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId:
        Ref: demovpcPrivateSubnetSubnet2RouteTable8983B828
      SubnetId:
        Ref: demovpcPrivateSubnetSubnet2Subnet4FD8659B
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Private-SubnetSubnet2/RouteTableAssociation
  demovpcPrivateSubnetSubnet2DefaultRouteFFB48155:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId:
        Ref: demovpcPrivateSubnetSubnet2RouteTable8983B828
      DestinationCidrBlock: 0.0.0.0/0
      NatGatewayId:
        Ref: demovpcPublicSubentSubnet1NATGateway89406216
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/Private-SubnetSubnet2/DefaultRoute
  demovpcIGW048842AE:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          Value: mycdkproject/demovpc
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/IGW
  demovpcVPCGW7D2E1CAC:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId:
        Ref: demovpcF2DCF540
      InternetGatewayId:
        Ref: demovpcIGW048842AE
    Metadata:
      aws:cdk:path: mycdkproject/demovpc/VPCGW
  privatesubnet1ABCDFA53:
    Type: AWS::SSM::Parameter
    Properties:
      Type: String
      Value:
        Ref: demovpcPrivateSubnetSubnet1Subnet7F486832
      Name: /demo/private-subnet-1
    Metadata:
      aws:cdk:path: mycdkproject/private-subnet-1/Resource
  privatesubnet2260E229D:
    Type: AWS::SSM::Parameter
    Properties:
      Type: String
      Value:
        Ref: demovpcPrivateSubnetSubnet2Subnet4FD8659B
      Name: /demo/private-subnet-2
    Metadata:
      aws:cdk:path: mycdkproject/private-subnet-2/Resource
  CDKMetadata:
    Type: AWS::CDK::Metadata
    Properties:
      Modules: aws-cdk=1.90.1,@aws-cdk/assets=1.90.0,@aws-cdk/aws-cloudwatch=1.90.0,@aws-cdk/aws-ec2=1.90.0,@aws-cdk/aws-events=1.90.0,@aws-cdk/aws-iam=1.90.0,@aws-cdk/aws-kms=1.90.0,@aws-cdk/aws-logs=1.90.0,@aws-cdk/aws-s3=1.90.0,@aws-cdk/aws-s3-assets=1.90.0,@aws-cdk/aws-ssm=1.90.0,@aws-cdk/cloud-assembly-schema=1.90.0,@aws-cdk/core=1.90.0,@aws-cdk/cx-api=1.90.0,@aws-cdk/region-info=1.90.0,jsii-runtime=Python/3.7.2
    Metadata:
      aws:cdk:path: mycdkproject/CDKMetadata/Default
    Condition: CDKMetadataAvailable
Conditions:
  CDKMetadataAvailable:
    Fn::Or:
      - Fn::Or:
          - Fn::Equals:
              - Ref: AWS::Region
              - ap-east-1
          - Fn::Equals:
              - Ref: AWS::Region
              - ap-northeast-1
          - Fn::Equals:
              - Ref: AWS::Region
              - ap-northeast-2
          - Fn::Equals:
              - Ref: AWS::Region
              - ap-south-1
          - Fn::Equals:
              - Ref: AWS::Region
              - ap-southeast-1
          - Fn::Equals:
              - Ref: AWS::Region
              - ap-southeast-2
          - Fn::Equals:
              - Ref: AWS::Region
              - ca-central-1
          - Fn::Equals:
              - Ref: AWS::Region
              - cn-north-1
          - Fn::Equals:
              - Ref: AWS::Region
              - cn-northwest-1
          - Fn::Equals:
              - Ref: AWS::Region
              - eu-central-1
      - Fn::Or:
          - Fn::Equals:
              - Ref: AWS::Region
              - eu-north-1
          - Fn::Equals:
              - Ref: AWS::Region
              - eu-west-1
          - Fn::Equals:
              - Ref: AWS::Region
              - eu-west-2
          - Fn::Equals:
              - Ref: AWS::Region
              - eu-west-3
          - Fn::Equals:
              - Ref: AWS::Region
              - me-south-1
          - Fn::Equals:
              - Ref: AWS::Region
              - sa-east-1
          - Fn::Equals:
              - Ref: AWS::Region
              - us-east-1
          - Fn::Equals:
              - Ref: AWS::Region
              - us-east-2
          - Fn::Equals:
              - Ref: AWS::Region
              - us-west-1
          - Fn::Equals:
              - Ref: AWS::Region
              - us-west-2
{
  "Resources": {
    "demovpcF2DCF540": {
      "Type": "AWS::EC2::VPC",
      "Properties": {
        "CidrBlock": "192.168.50.0/24",
        "EnableDnsHostnames": true,
        "EnableDnsSupport": true,
        "InstanceTenancy": "default",
        "Tags": [
          {
            "Key": "Name",
            "Value": "mycdkproject/demovpc"
          }
        ]
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Resource"
      }
    },
    "demovpcPublicSubentSubnet1Subnet9D54A554": {
      "Type": "AWS::EC2::Subnet",
      "Properties": {
        "CidrBlock": "192.168.50.0/26",
        "VpcId": {
          "Ref": "demovpcF2DCF540"
        },
        "AvailabilityZone": {
          "Fn::Select": [
            0,
            {
              "Fn::GetAZs": ""
            }
          ]
        },
        "MapPublicIpOnLaunch": true,
        "Tags": [
          {
            "Key": "aws-cdk:subnet-name",
            "Value": "Public-Subent"
          },
          {
            "Key": "aws-cdk:subnet-type",
            "Value": "Public"
          },
          {
            "Key": "Name",
            "Value": "mycdkproject/demovpc/Public-SubentSubnet1"
          }
        ]
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Public-SubentSubnet1/Subnet"
      }
    },
    "demovpcPublicSubentSubnet1RouteTable91CAF0D9": {
      "Type": "AWS::EC2::RouteTable",
      "Properties": {
        "VpcId": {
          "Ref": "demovpcF2DCF540"
        },
        "Tags": [
          {
            "Key": "Name",
            "Value": "mycdkproject/demovpc/Public-SubentSubnet1"
          }
        ]
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Public-SubentSubnet1/RouteTable"
      }
    },
    "demovpcPublicSubentSubnet1RouteTableAssociationB046656F": {
      "Type": "AWS::EC2::SubnetRouteTableAssociation",
      "Properties": {
        "RouteTableId": {
          "Ref": "demovpcPublicSubentSubnet1RouteTable91CAF0D9"
        },
        "SubnetId": {
          "Ref": "demovpcPublicSubentSubnet1Subnet9D54A554"
        }
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Public-SubentSubnet1/RouteTableAssociation"
      }
    },
    "demovpcPublicSubentSubnet1DefaultRouteD441EE14": {
      "Type": "AWS::EC2::Route",
      "Properties": {
        "RouteTableId": {
          "Ref": "demovpcPublicSubentSubnet1RouteTable91CAF0D9"
        },
        "DestinationCidrBlock": "0.0.0.0/0",
        "GatewayId": {
          "Ref": "demovpcIGW048842AE"
        }
      },
      "DependsOn": [
        "demovpcVPCGW7D2E1CAC"
      ],
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Public-SubentSubnet1/DefaultRoute"
      }
    },
    "demovpcPublicSubentSubnet1EIPBD2741E1": {
      "Type": "AWS::EC2::EIP",
      "Properties": {
        "Domain": "vpc",
        "Tags": [
          {
            "Key": "Name",
            "Value": "mycdkproject/demovpc/Public-SubentSubnet1"
          }
        ]
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Public-SubentSubnet1/EIP"
      }
    },
    "demovpcPublicSubentSubnet1NATGateway89406216": {
      "Type": "AWS::EC2::NatGateway",
      "Properties": {
        "AllocationId": {
          "Fn::GetAtt": [
            "demovpcPublicSubentSubnet1EIPBD2741E1",
            "AllocationId"
          ]
        },
        "SubnetId": {
          "Ref": "demovpcPublicSubentSubnet1Subnet9D54A554"
        },
        "Tags": [
          {
            "Key": "Name",
            "Value": "mycdkproject/demovpc/Public-SubentSubnet1"
          }
        ]
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Public-SubentSubnet1/NATGateway"
      }
    },
    "demovpcPublicSubentSubnet2Subnet1ECEB9DF": {
      "Type": "AWS::EC2::Subnet",
      "Properties": {
        "CidrBlock": "192.168.50.64/26",
        "VpcId": {
          "Ref": "demovpcF2DCF540"
        },
        "AvailabilityZone": {
          "Fn::Select": [
            1,
            {
              "Fn::GetAZs": ""
            }
          ]
        },
        "MapPublicIpOnLaunch": true,
        "Tags": [
          {
            "Key": "aws-cdk:subnet-name",
            "Value": "Public-Subent"
          },
          {
            "Key": "aws-cdk:subnet-type",
            "Value": "Public"
          },
          {
            "Key": "Name",
            "Value": "mycdkproject/demovpc/Public-SubentSubnet2"
          }
        ]
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Public-SubentSubnet2/Subnet"
      }
    },
    "demovpcPublicSubentSubnet2RouteTable859486AD": {
      "Type": "AWS::EC2::RouteTable",
      "Properties": {
        "VpcId": {
          "Ref": "demovpcF2DCF540"
        },
        "Tags": [
          {
            "Key": "Name",
            "Value": "mycdkproject/demovpc/Public-SubentSubnet2"
          }
        ]
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Public-SubentSubnet2/RouteTable"
      }
    },
    "demovpcPublicSubentSubnet2RouteTableAssociation4812D27C": {
      "Type": "AWS::EC2::SubnetRouteTableAssociation",
      "Properties": {
        "RouteTableId": {
          "Ref": "demovpcPublicSubentSubnet2RouteTable859486AD"
        },
        "SubnetId": {
          "Ref": "demovpcPublicSubentSubnet2Subnet1ECEB9DF"
        }
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Public-SubentSubnet2/RouteTableAssociation"
      }
    },
    "demovpcPublicSubentSubnet2DefaultRoute41BC99C2": {
      "Type": "AWS::EC2::Route",
      "Properties": {
        "RouteTableId": {
          "Ref": "demovpcPublicSubentSubnet2RouteTable859486AD"
        },
        "DestinationCidrBlock": "0.0.0.0/0",
        "GatewayId": {
          "Ref": "demovpcIGW048842AE"
        }
      },
      "DependsOn": [
        "demovpcVPCGW7D2E1CAC"
      ],
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Public-SubentSubnet2/DefaultRoute"
      }
    },
    "demovpcPrivateSubnetSubnet1Subnet7F486832": {
      "Type": "AWS::EC2::Subnet",
      "Properties": {
        "CidrBlock": "192.168.50.128/26",
        "VpcId": {
          "Ref": "demovpcF2DCF540"
        },
        "AvailabilityZone": {
          "Fn::Select": [
            0,
            {
              "Fn::GetAZs": ""
            }
          ]
        },
        "MapPublicIpOnLaunch": false,
        "Tags": [
          {
            "Key": "aws-cdk:subnet-name",
            "Value": "Private-Subnet"
          },
          {
            "Key": "aws-cdk:subnet-type",
            "Value": "Private"
          },
          {
            "Key": "Name",
            "Value": "mycdkproject/demovpc/Private-SubnetSubnet1"
          }
        ]
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Private-SubnetSubnet1/Subnet"
      }
    },
    "demovpcPrivateSubnetSubnet1RouteTableDA716B65": {
      "Type": "AWS::EC2::RouteTable",
      "Properties": {
        "VpcId": {
          "Ref": "demovpcF2DCF540"
        },
        "Tags": [
          {
            "Key": "Name",
            "Value": "mycdkproject/demovpc/Private-SubnetSubnet1"
          }
        ]
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Private-SubnetSubnet1/RouteTable"
      }
    },
    "demovpcPrivateSubnetSubnet1RouteTableAssociation942BFC16": {
      "Type": "AWS::EC2::SubnetRouteTableAssociation",
      "Properties": {
        "RouteTableId": {
          "Ref": "demovpcPrivateSubnetSubnet1RouteTableDA716B65"
        },
        "SubnetId": {
          "Ref": "demovpcPrivateSubnetSubnet1Subnet7F486832"
        }
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Private-SubnetSubnet1/RouteTableAssociation"
      }
    },
    "demovpcPrivateSubnetSubnet1DefaultRouteDC8CEC57": {
      "Type": "AWS::EC2::Route",
      "Properties": {
        "RouteTableId": {
          "Ref": "demovpcPrivateSubnetSubnet1RouteTableDA716B65"
        },
        "DestinationCidrBlock": "0.0.0.0/0",
        "NatGatewayId": {
          "Ref": "demovpcPublicSubentSubnet1NATGateway89406216"
        }
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Private-SubnetSubnet1/DefaultRoute"
      }
    },
    "demovpcPrivateSubnetSubnet2Subnet4FD8659B": {
      "Type": "AWS::EC2::Subnet",
      "Properties": {
        "CidrBlock": "192.168.50.192/26",
        "VpcId": {
          "Ref": "demovpcF2DCF540"
        },
        "AvailabilityZone": {
          "Fn::Select": [
            1,
            {
              "Fn::GetAZs": ""
            }
          ]
        },
        "MapPublicIpOnLaunch": false,
        "Tags": [
          {
            "Key": "aws-cdk:subnet-name",
            "Value": "Private-Subnet"
          },
          {
            "Key": "aws-cdk:subnet-type",
            "Value": "Private"
          },
          {
            "Key": "Name",
            "Value": "mycdkproject/demovpc/Private-SubnetSubnet2"
          }
        ]
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Private-SubnetSubnet2/Subnet"
      }
    },
    "demovpcPrivateSubnetSubnet2RouteTable8983B828": {
      "Type": "AWS::EC2::RouteTable",
      "Properties": {
        "VpcId": {
          "Ref": "demovpcF2DCF540"
        },
        "Tags": [
          {
            "Key": "Name",
            "Value": "mycdkproject/demovpc/Private-SubnetSubnet2"
          }
        ]
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Private-SubnetSubnet2/RouteTable"
      }
    },
    "demovpcPrivateSubnetSubnet2RouteTableAssociationDCEDC16A": {
      "Type": "AWS::EC2::SubnetRouteTableAssociation",
      "Properties": {
        "RouteTableId": {
          "Ref": "demovpcPrivateSubnetSubnet2RouteTable8983B828"
        },
        "SubnetId": {
          "Ref": "demovpcPrivateSubnetSubnet2Subnet4FD8659B"
        }
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Private-SubnetSubnet2/RouteTableAssociation"
      }
    },
    "demovpcPrivateSubnetSubnet2DefaultRouteFFB48155": {
      "Type": "AWS::EC2::Route",
      "Properties": {
        "RouteTableId": {
          "Ref": "demovpcPrivateSubnetSubnet2RouteTable8983B828"
        },
        "DestinationCidrBlock": "0.0.0.0/0",
        "NatGatewayId": {
          "Ref": "demovpcPublicSubentSubnet1NATGateway89406216"
        }
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/Private-SubnetSubnet2/DefaultRoute"
      }
    },
    "demovpcIGW048842AE": {
      "Type": "AWS::EC2::InternetGateway",
      "Properties": {
        "Tags": [
          {
            "Key": "Name",
            "Value": "mycdkproject/demovpc"
          }
        ]
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/IGW"
      }
    },
    "demovpcVPCGW7D2E1CAC": {
      "Type": "AWS::EC2::VPCGatewayAttachment",
      "Properties": {
        "VpcId": {
          "Ref": "demovpcF2DCF540"
        },
        "InternetGatewayId": {
          "Ref": "demovpcIGW048842AE"
        }
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/demovpc/VPCGW"
      }
    },
    "privatesubnet1ABCDFA53": {
      "Type": "AWS::SSM::Parameter",
      "Properties": {
        "Type": "String",
        "Value": {
          "Ref": "demovpcPrivateSubnetSubnet1Subnet7F486832"
        },
        "Name": "/demo/private-subnet-1"
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/private-subnet-1/Resource"
      }
    },
    "privatesubnet2260E229D": {
      "Type": "AWS::SSM::Parameter",
      "Properties": {
        "Type": "String",
        "Value": {
          "Ref": "demovpcPrivateSubnetSubnet2Subnet4FD8659B"
        },
        "Name": "/demo/private-subnet-2"
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/private-subnet-2/Resource"
      }
    },
    "CDKMetadata": {
      "Type": "AWS::CDK::Metadata",
      "Properties": {
        "Modules": "aws-cdk=1.90.1,@aws-cdk/assets=1.90.0,@aws-cdk/aws-cloudwatch=1.90.0,@aws-cdk/aws-ec2=1.90.0,@aws-cdk/aws-events=1.90.0,@aws-cdk/aws-iam=1.90.0,@aws-cdk/aws-kms=1.90.0,@aws-cdk/aws-logs=1.90.0,@aws-cdk/aws-s3=1.90.0,@aws-cdk/aws-s3-assets=1.90.0,@aws-cdk/aws-ssm=1.90.0,@aws-cdk/cloud-assembly-schema=1.90.0,@aws-cdk/core=1.90.0,@aws-cdk/cx-api=1.90.0,@aws-cdk/region-info=1.90.0,jsii-runtime=Python/3.7.2"
      },
      "Metadata": {
        "aws:cdk:path": "mycdkproject/CDKMetadata/Default"
      },
      "Condition": "CDKMetadataAvailable"
    }
  },
  "Conditions": {
    "CDKMetadataAvailable": {
      "Fn::Or": [
        {
          "Fn::Or": [
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "ap-east-1"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "ap-northeast-1"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "ap-northeast-2"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "ap-south-1"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "ap-southeast-1"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "ap-southeast-2"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "ca-central-1"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "cn-north-1"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "cn-northwest-1"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "eu-central-1"
              ]
            }
          ]
        },
        {
          "Fn::Or": [
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "eu-north-1"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "eu-west-1"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "eu-west-2"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "eu-west-3"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "me-south-1"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "sa-east-1"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "us-east-1"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "us-east-2"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "us-west-1"
              ]
            },
            {
              "Fn::Equals": [
                {
                  "Ref": "AWS::Region"
                },
                "us-west-2"
              ]
            }
          ]
        }
      ]
    }
  }
}

If you can see that templates are created under cdk.out. Now, let’s deploy.

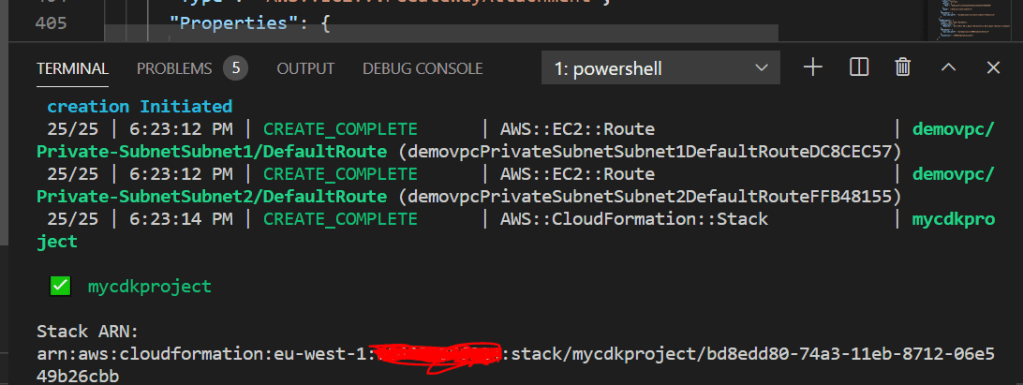

cdk deploy --profile cdkprofile
PS C:\Users\Ramasankar\mycdkproject> cdk deploy --profile cdkprofile
mycdkproject: deploying...
mycdkproject: creating CloudFormation changeset...
  0/25 | 6:20:17 PM | REVIEW_IN_PROGRESS   | AWS::CloudFormation::Stack            | mycdkproject User Initiated
  0/25 | 6:20:23 PM | CREATE_IN_PROGRESS   | AWS::CloudFormation::Stack            | mycdkproject User Initiated
  0/25 | 6:20:28 PM | CREATE_IN_PROGRESS   | AWS::CDK::Metadata                    | CDKMetadata/Default (CDKMetadata)
  0/25 | 6:20:28 PM | CREATE_IN_PROGRESS   | AWS::EC2::InternetGateway             | demovpc/IGW (demovpcIGW048842AE)
  0/25 | 6:20:28 PM | CREATE_IN_PROGRESS   | AWS::EC2::EIP                         | demovpc/Public-SubentSubnet1/EIP (demovpcPublicSubentSubnet1EIPBD2741E1)
  0/25 | 6:20:28 PM | CREATE_IN_PROGRESS   | AWS::EC2::VPC                         | demovpc
(demovpcF2DCF540)
  0/25 | 6:20:28 PM | CREATE_IN_PROGRESS   | AWS::EC2::InternetGateway             | demovpc/IGW (demovpcIGW048842AE) Resource creation Initiated
  1/25 | 6:20:28 PM | CREATE_IN_PROGRESS   | AWS::EC2::VPC                         | demovpc
(demovpcF2DCF540) Resource creation Initiated
  1/25 | 6:20:29 PM | CREATE_IN_PROGRESS   | AWS::CDK::Metadata                    | CDKMetadata/Default (CDKMetadata) Resource creation Initiated
  1/25 | 6:20:30 PM | CREATE_COMPLETE      | AWS::CDK::Metadata                    | CDKMetadata/Default (CDKMetadata)
  1/25 | 6:20:30 PM | CREATE_IN_PROGRESS   | AWS::EC2::EIP                         | demovpc/Public-SubentSubnet1/EIP (demovpcPublicSubentSubnet1EIPBD2741E1) Resource creation Initiated
  8/25 | 6:20:44 PM | CREATE_COMPLETE      | AWS::EC2::InternetGateway             | demovpc/IGW (demovpcIGW048842AE)
  8/25 | 6:20:44 PM | CREATE_COMPLETE      | AWS::EC2::VPC                         | demovpc
(demovpcF2DCF540)
  8/25 | 6:20:46 PM | CREATE_IN_PROGRESS   | AWS::EC2::RouteTable                  | demovpc/Public-SubentSubnet1/RouteTable (demovpcPublicSubentSubnet1RouteTable91CAF0D9)
  8/25 | 6:20:46 PM | CREATE_COMPLETE      | AWS::EC2::EIP                         | demovpc/Public-SubentSubnet1/EIP (demovpcPublicSubentSubnet1EIPBD2741E1)
  8/25 | 6:20:46 PM | CREATE_IN_PROGRESS   | AWS::EC2::RouteTable                  | demovpc/Private-SubnetSubnet1/RouteTable (demovpcPrivateSubnetSubnet1RouteTableDA716B65)
  8/25 | 6:20:46 PM | CREATE_IN_PROGRESS   | AWS::EC2::RouteTable                  | demovpc/Public-SubentSubnet2/RouteTable (demovpcPublicSubentSubnet2RouteTable859486AD)
  8/25 | 6:20:46 PM | CREATE_IN_PROGRESS   | AWS::EC2::RouteTable                  | demovpc/Private-SubnetSubnet2/RouteTable (demovpcPrivateSubnetSubnet2RouteTable8983B828)
  8/25 | 6:20:46 PM | CREATE_IN_PROGRESS   | AWS::EC2::VPCGatewayAttachment        | demovpc/VPCGW (demovpcVPCGW7D2E1CAC)
  8/25 | 6:20:46 PM | CREATE_IN_PROGRESS   | AWS::EC2::RouteTable                  | demovpc/Private-SubnetSubnet1/RouteTable (demovpcPrivateSubnetSubnet1RouteTableDA716B65) Resource creation Initiated
  8/25 | 6:20:46 PM | CREATE_IN_PROGRESS   | AWS::EC2::RouteTable                  | demovpc/Public-SubentSubnet2/RouteTable (demovpcPublicSubentSubnet2RouteTable859486AD) Resource creation Initiated
  8/25 | 6:20:47 PM | CREATE_IN_PROGRESS   | AWS::EC2::Subnet                      | demovpc/Private-SubnetSubnet2/Subnet (demovpcPrivateSubnetSubnet2Subnet4FD8659B)
  8/25 | 6:20:47 PM | CREATE_IN_PROGRESS   | AWS::EC2::RouteTable                  | demovpc/Private-SubnetSubnet2/RouteTable (demovpcPrivateSubnetSubnet2RouteTable8983B828) Resource creation Initiated
  8/25 | 6:20:47 PM | CREATE_IN_PROGRESS   | AWS::EC2::RouteTable                  | demovpc/Public-SubentSubnet1/RouteTable (demovpcPublicSubentSubnet1RouteTable91CAF0D9) Resource creation Initiated
  8/25 | 6:20:47 PM | CREATE_IN_PROGRESS   | AWS::EC2::VPCGatewayAttachment        | demovpc/VPCGW (demovpcVPCGW7D2E1CAC) Resource creation Initiated
  8/25 | 6:20:47 PM | CREATE_IN_PROGRESS   | AWS::EC2::Subnet                      | demovpc/Public-SubentSubnet2/Subnet (demovpcPublicSubentSubnet2Subnet1ECEB9DF)
  8/25 | 6:20:47 PM | CREATE_IN_PROGRESS   | AWS::EC2::Subnet                      | demovpc/Private-SubnetSubnet2/Subnet (demovpcPrivateSubnetSubnet2Subnet4FD8659B) Resource creation Initiated
  8/25 | 6:20:47 PM | CREATE_IN_PROGRESS   | AWS::EC2::Subnet                      | demovpc/Private-SubnetSubnet1/Subnet (demovpcPrivateSubnetSubnet1Subnet7F486832)
  8/25 | 6:20:47 PM | CREATE_COMPLETE      | AWS::EC2::RouteTable                  | demovpc/Private-SubnetSubnet1/RouteTable (demovpcPrivateSubnetSubnet1RouteTableDA716B65)
  8/25 | 6:20:47 PM | CREATE_IN_PROGRESS   | AWS::EC2::Subnet                      | demovpc/Public-SubentSubnet2/Subnet (demovpcPublicSubentSubnet2Subnet1ECEB9DF) Resource creation Initiated
  8/25 | 6:20:47 PM | CREATE_IN_PROGRESS   | AWS::EC2::Subnet                      | demovpc/Public-SubentSubnet1/Subnet (demovpcPublicSubentSubnet1Subnet9D54A554)
  8/25 | 6:20:47 PM | CREATE_IN_PROGRESS   | AWS::EC2::Subnet                      | demovpc/Private-SubnetSubnet1/Subnet (demovpcPrivateSubnetSubnet1Subnet7F486832) Resource creation Initiated
  8/25 | 6:20:47 PM | CREATE_COMPLETE      | AWS::EC2::RouteTable                  | demovpc/Public-SubentSubnet2/RouteTable (demovpcPublicSubentSubnet2RouteTable859486AD)
  8/25 | 6:20:47 PM | CREATE_COMPLETE      | AWS::EC2::RouteTable                  | demovpc/Private-SubnetSubnet2/RouteTable (demovpcPrivateSubnetSubnet2RouteTable8983B828)
  8/25 | 6:20:47 PM | CREATE_COMPLETE      | AWS::EC2::RouteTable                  | demovpc/Public-SubentSubnet1/RouteTable (demovpcPublicSubentSubnet1RouteTable91CAF0D9)
  8/25 | 6:20:48 PM | CREATE_IN_PROGRESS   | AWS::EC2::Subnet                      | demovpc/Public-SubentSubnet1/Subnet (demovpcPublicSubentSubnet1Subnet9D54A554) Resource creation Initiated
 13/25 | 6:21:02 PM | CREATE_COMPLETE      | AWS::EC2::VPCGatewayAttachment        | demovpc/VPCGW (demovpcVPCGW7D2E1CAC)
 13/25 | 6:21:03 PM | CREATE_COMPLETE      | AWS::EC2::Subnet                      | demovpc/Private-SubnetSubnet2/Subnet (demovpcPrivateSubnetSubnet2Subnet4FD8659B)
 13/25 | 6:21:03 PM | CREATE_COMPLETE      | AWS::EC2::Subnet                      | demovpc/Public-SubentSubnet2/Subnet (demovpcPublicSubentSubnet2Subnet1ECEB9DF)
 13/25 | 6:21:04 PM | CREATE_COMPLETE      | AWS::EC2::Subnet                      | demovpc/Private-SubnetSubnet1/Subnet (demovpcPrivateSubnetSubnet1Subnet7F486832)
 13/25 | 6:21:04 PM | CREATE_COMPLETE      | AWS::EC2::Subnet                      | demovpc/Public-SubentSubnet1/Subnet (demovpcPublicSubentSubnet1Subnet9D54A554)
 13/25 | 6:21:04 PM | CREATE_IN_PROGRESS   | AWS::EC2::Route                       | demovpc/Public-SubentSubnet2/DefaultRoute (demovpcPublicSubentSubnet2DefaultRoute41BC99C2)
 13/25 | 6:21:04 PM | CREATE_IN_PROGRESS   | AWS::EC2::Route                       | demovpc/Public-SubentSubnet1/DefaultRoute (demovpcPublicSubentSubnet1DefaultRouteD441EE14)
 13/25 | 6:21:04 PM | CREATE_IN_PROGRESS   | AWS::EC2::Route                       | demovpc/Public-SubentSubnet2/DefaultRoute (demovpcPublicSubentSubnet2DefaultRoute41BC99C2) Resource creation Initiated
 13/25 | 6:21:04 PM | CREATE_IN_PROGRESS   | AWS::EC2::Route                       | demovpc/Public-SubentSubnet1/DefaultRoute (demovpcPublicSubentSubnet1DefaultRouteD441EE14) Resource creation Initiated
 13/25 | 6:21:05 PM | CREATE_IN_PROGRESS   | AWS::SSM::Parameter                   | private-subnet-2 (privatesubnet2260E229D)
 13/25 | 6:21:05 PM | CREATE_IN_PROGRESS   | AWS::EC2::SubnetRouteTableAssociation | demovpc/Private-SubnetSubnet2/RouteTableAssociation (demovpcPrivateSubnetSubnet2RouteTableAssociationDCEDC16A)
 13/25 | 6:21:05 PM | CREATE_IN_PROGRESS   | AWS::EC2::SubnetRouteTableAssociation | demovpc/Public-SubentSubnet2/RouteTableAssociation (demovpcPublicSubentSubnet2RouteTableAssociation4812D27C)
 13/25 | 6:21:05 PM | CREATE_IN_PROGRESS   | AWS::SSM::Parameter                   | private-subnet-1 (privatesubnet1ABCDFA53)
 13/25 | 6:21:06 PM | CREATE_IN_PROGRESS   | AWS::EC2::SubnetRouteTableAssociation | demovpc/Private-SubnetSubnet1/RouteTableAssociation (demovpcPrivateSubnetSubnet1RouteTableAssociation942BFC16)
 13/25 | 6:21:06 PM | CREATE_IN_PROGRESS   | AWS::EC2::SubnetRouteTableAssociation | demovpc/Private-SubnetSubnet2/RouteTableAssociation (demovpcPrivateSubnetSubnet2RouteTableAssociationDCEDC16A) Resource creation Initiated
 13/25 | 6:21:06 PM | CREATE_IN_PROGRESS   | AWS::EC2::NatGateway                  | demovpc/Public-SubentSubnet1/NATGateway (demovpcPublicSubentSubnet1NATGateway89406216)
 13/25 | 6:21:06 PM | CREATE_IN_PROGRESS   | AWS::EC2::SubnetRouteTableAssociation | demovpc/Public-SubentSubnet2/RouteTableAssociation (demovpcPublicSubentSubnet2RouteTableAssociation4812D27C) Resource creation Initiated
 13/25 | 6:21:06 PM | CREATE_IN_PROGRESS   | AWS::EC2::SubnetRouteTableAssociation | demovpc/Public-SubentSubnet1/RouteTableAssociation (demovpcPublicSubentSubnet1RouteTableAssociationB046656F)
 15/25 | 6:21:06 PM | CREATE_IN_PROGRESS   | AWS::EC2::NatGateway                  | demovpc/Public-SubentSubnet1/NATGateway (demovpcPublicSubentSubnet1NATGateway89406216) Resource creation Initiated
 15/25 | 6:21:06 PM | CREATE_IN_PROGRESS   | AWS::EC2::SubnetRouteTableAssociation | demovpc/Private-SubnetSubnet1/RouteTableAssociation (demovpcPrivateSubnetSubnet1RouteTableAssociation942BFC16) Resource creation Initiated
 15/25 | 6:21:06 PM | CREATE_IN_PROGRESS   | AWS::EC2::SubnetRouteTableAssociation | demovpc/Public-SubentSubnet1/RouteTableAssociation (demovpcPublicSubentSubnet1RouteTableAssociationB046656F) Resource creation Initiated
 15/25 | 6:21:07 PM | CREATE_IN_PROGRESS   | AWS::SSM::Parameter                   | private-subnet-2 (privatesubnet2260E229D) Resource creation Initiated
 15/25 | 6:21:07 PM | CREATE_IN_PROGRESS   | AWS::SSM::Parameter                   | private-subnet-1 (privatesubnet1ABCDFA53) Resource creation Initiated
 15/25 | 6:21:07 PM | CREATE_COMPLETE      | AWS::SSM::Parameter                   | private-subnet-2 (privatesubnet2260E229D)
 15/25 | 6:21:08 PM | CREATE_COMPLETE      | AWS::SSM::Parameter                   | private-subnet-1 (privatesubnet1ABCDFA53)
 21/25 | 6:21:20 PM | CREATE_COMPLETE      | AWS::EC2::Route                       | demovpc/Public-SubentSubnet2/DefaultRoute (demovpcPublicSubentSubnet2DefaultRoute41BC99C2)
 21/25 | 6:21:20 PM | CREATE_COMPLETE      | AWS::EC2::Route                       | demovpc/Public-SubentSubnet1/DefaultRoute (demovpcPublicSubentSubnet1DefaultRouteD441EE14)
 21/25 | 6:21:21 PM | CREATE_COMPLETE      | AWS::EC2::SubnetRouteTableAssociation | demovpc/Private-SubnetSubnet2/RouteTableAssociation (demovpcPrivateSubnetSubnet2RouteTableAssociationDCEDC16A)
 21/25 | 6:21:21 PM | CREATE_COMPLETE      | AWS::EC2::SubnetRouteTableAssociation | demovpc/Public-SubentSubnet2/RouteTableAssociation (demovpcPublicSubentSubnet2RouteTableAssociation4812D27C)
 21/25 | 6:21:22 PM | CREATE_COMPLETE      | AWS::EC2::SubnetRouteTableAssociation | demovpc/Private-SubnetSubnet1/RouteTableAssociation (demovpcPrivateSubnetSubnet1RouteTableAssociation942BFC16)
 21/25 | 6:21:22 PM | CREATE_COMPLETE      | AWS::EC2::SubnetRouteTableAssociation | demovpc/Public-SubentSubnet1/RouteTableAssociation (demovpcPublicSubentSubnet1RouteTableAssociationB046656F)
21/25 Currently in progress: mycdkproject, demovpcPublicSubentSubnet1NATGateway89406216
 22/25 | 6:22:54 PM | CREATE_COMPLETE      | AWS::EC2::NatGateway                  | demovpc/Public-SubentSubnet1/NATGateway (demovpcPublicSubentSubnet1NATGateway89406216)
 22/25 | 6:22:56 PM | CREATE_IN_PROGRESS   | AWS::EC2::Route                       | demovpc/Private-SubnetSubnet1/DefaultRoute (demovpcPrivateSubnetSubnet1DefaultRouteDC8CEC57)
 22/25 | 6:22:56 PM | CREATE_IN_PROGRESS   | AWS::EC2::Route                       | demovpc/Private-SubnetSubnet2/DefaultRoute (demovpcPrivateSubnetSubnet2DefaultRouteFFB48155)
 22/25 | 6:22:56 PM | CREATE_IN_PROGRESS   | AWS::EC2::Route                       | demovpc/Private-SubnetSubnet1/DefaultRoute (demovpcPrivateSubnetSubnet1DefaultRouteDC8CEC57) Resource creation Initiated
 22/25 | 6:22:57 PM | CREATE_IN_PROGRESS   | AWS::EC2::Route                       | demovpc/Private-SubnetSubnet2/DefaultRoute (demovpcPrivateSubnetSubnet2DefaultRouteFFB48155) Resource creation Initiated
 25/25 | 6:23:12 PM | CREATE_COMPLETE      | AWS::EC2::Route                       | demovpc/Private-SubnetSubnet1/DefaultRoute (demovpcPrivateSubnetSubnet1DefaultRouteDC8CEC57)
 25/25 | 6:23:12 PM | CREATE_COMPLETE      | AWS::EC2::Route                       | demovpc/Private-SubnetSubnet2/DefaultRoute (demovpcPrivateSubnetSubnet2DefaultRouteFFB48155)
 25/25 | 6:23:14 PM | CREATE_COMPLETE      | AWS::CloudFormation::Stack            | mycdkproject

 ✅  mycdkproject

Oh, well how simple is that? Very minimal code and you don’t need to write large cloud formation templates. This is just a sample example, i’m going to upload full project in my github repository (https://github.com/sankar276/awscdkpython)

Hope you enjoyed the post.

Cheers

Ramasankar Molleti

LinkedIn

Published by Ramasankar

As a Principal Cloud Architect with over 18 years of experience, I am dedicated to revolutionizing IT landscapes through cutting-edge cloud solutions. My expertise spans Cloud Architecture, Security Architecture, Solution Design, Cloud Migration, Database Transformation, Development, and Big Data Analytics.Currently, I spearhead cloud initiatives with a focus on Infrastructure, Containerization, Security, Big Data, Machine Learning, and Artificial Intelligence. I collaborate closely with development teams to architect, build, and manage robust cloud ecosystems that drive business growth and technological advancement.Core Competencies: • Cloud Platforms: AWS, Google Cloud Platform, Microsoft Azure • Technologies: Kubernetes, Serverless Computing, Microservices • Databases: MS SQL Server, PostgreSQL, Oracle, MongoDB, Amazon Redshift, DynamoDB, Aurora • Industries: Finance, Retail, Manufacturing. Throughout my career, I’ve had the privilege of working with industry leaders such as OCC, Gate Gourmet, Walgreens, and Johnson Controls, gaining invaluable insights across diverse sectors.As a lifelong learner and knowledge sharer, I take pride in being the first in my organization to complete all major AWS certifications. I am passionate about mentoring and guiding fellow professionals in their cloud journey, fostering a culture of continuous learning and innovation.Let’s connect and explore how we can leverage cloud technologies to transform your business: • LinkedIn: https://www.linkedin.com/in/ramasankar-molleti-23b13218/ • Book a mentorship session: [1:1] Together, let’s architect the future of cloud computing and drive technological excellence. Disclaimer The views expressed on this website/blog are mine alone and do not reflect the views of my company. All postings on this blog are provided “AS IS” with no warranties, and confers no rights. The owner of https://ramasankarmolleti.com will not be liable for any errors or omissions in this information nor for the availability of this information. The owner will not be liable for any losses, injuries, or damages from the display or use of this information.

2 thoughts on “AWS CDK (Python)- How to Configure VPC, Subnets, Internet gateway, NatGateway”

  1. Pingback: AWS CDK (Python) How to Create EKS Cluster – Ramasankar Molleti Blog

Leave a comment
