Configure EC2, ALB using terraform

Continuation to the previous article I’m going to demonstrate how to create AWS EC2, ALB.

Backend.tf

terraform {
  required_version = ">=0.13.0"
  backend "s3" {
    region         = "eu-west-1"
    profile        = "default"
    key            = "terraformstatefile.tfstate"
    bucket         = "terraformstateinfo2020"
    dynamodb_table = "terraformlocking"
  }
}

Providers.tf

provider "aws" {
  profile = var.profile
  region  = var.region
  alias   = "region"
}

variables.tf

variable "profile" {
  type    = string
  default = "default"
}

variable "region" {
  type    = string
  default = "eu-west-1"
}

variable "vpc_cidr" {
  description = "Please entere cidr block"
  type        = string
  default     = "192.168.50.0/24"
}

variable "instance_type" {
  description = "Please chose instance type"
  type        = string
  default     = "t3.medium"
}

variable "ec2_tags" {
  type = map
  default = {
    Name = "appserver"
  }
}

variable "ec2_amis" {
  type = map
  default = {
    eu-west-1 = "ami-0fc970315c2d38f01"
    eu-west-2 = "ami-098828924dc89ea4a"
  }
}

variable "my_app_s3_bucket" {
  type    = string
  default = "terraform-demo-202102171102"
}

datasources.tf

# Declare the data source
data "aws_availability_zones" "azs" {
  state = "available"
}

vpc.tf

#Create VPC
resource "aws_vpc" "mydemodemo" {
  provider             = aws.region
  cidr_block           = var.vpc_cidr
  instance_tenancy     = "default"
  enable_dns_support   = true
  enable_dns_hostnames = true
  tags = {
    Name        = "mydemodemo",
    Environment = terraform.workspace
  }
}

publicsubnets.tf

locals {
  az_names       = data.aws_availability_zones.azs.names
  public_sub_ids = aws_subnet.public.*.id
}

resource "aws_subnet" "public" {
  count                   = length(slice(local.az_names, 0, 2))
  vpc_id                  = aws_vpc.mydemodemo.id
  cidr_block              = cidrsubnet(var.vpc_cidr, 2, count.index)
  availability_zone       = local.az_names[count.index]
  map_public_ip_on_launch = true
  tags = {
    Name = "PublicSubnet-${count.index + 1}"
  }
}

# Internet Gateway Setup

resource "aws_internet_gateway" "igw" {
  vpc_id = aws_vpc.mydemodemo.id

  tags = {
    Name = "mydemo-igw"
  }
}

# Route tables for public subnets

resource "aws_route_table" "publicrt" {
  vpc_id = aws_vpc.mydemodemo.id

  route {
    cidr_block = "0.0.0.0/0"
    gateway_id = aws_internet_gateway.igw.id
  }

  tags = {
    Name = "mydemopublicrt"
  }
}

# Subents association for public subnets

resource "aws_route_table_association" "pub_subnet_association" {
  count          = length(slice(local.az_names, 0, 2))
  subnet_id      = aws_subnet.public.*.id[count.index]
  route_table_id = aws_route_table.publicrt.id
}

privatesubnets.tf

# Create private subnets
resource "aws_subnet" "private" {
  count             = length(slice(local.az_names, 0, 2))
  vpc_id            = aws_vpc.mydemodemo.id
  cidr_block        = cidrsubnet(var.vpc_cidr, 2, count.index + length(slice(local.az_names, 0, 2)))
  availability_zone = local.az_names[count.index]
  tags = {
    Name = "PrivateSubnet-${count.index + 1}"
  }
}

# Elastic IP for NAT Gateway

resource "aws_eip" "nat" {
  vpc = true
}


# Create NAT Gateway for private subnets
resource "aws_nat_gateway" "ngw" {
  #  count         = length(slice(local.az_names, 0, 2))
  allocation_id = aws_eip.nat.id
  subnet_id     = aws_subnet.public.*.id[0]

  tags = {
    Name = "NatGateway"
  }
}

output "nat_gateway_ip" {
  value = aws_eip.nat.public_ip
}

# Route tables for private subnets

resource "aws_route_table" "privatert" {
  vpc_id = aws_vpc.mydemodemo.id

  route {
    cidr_block     = "0.0.0.0/0"
    nat_gateway_id = aws_nat_gateway.ngw.id
  }

  tags = {
    Name = "mydemoprivatert"
  }
}

# Subents association for private subnets

resource "aws_route_table_association" "private_subnet_association" {
  count          = length(slice(local.az_names, 0, 2))
  subnet_id      = aws_subnet.private.*.id[count.index]
  route_table_id = aws_route_table.privatert.id
}

create iam roles , polcies for ec2 instance

data "template_file" "s3_ec2_policy" {
  template = file("scripts/iam/ec2-policy.json")
  vars = {
    s3_bucket_arn = "arn:aws:s3:::${var.my_app_s3_bucket}/*"
  }
}

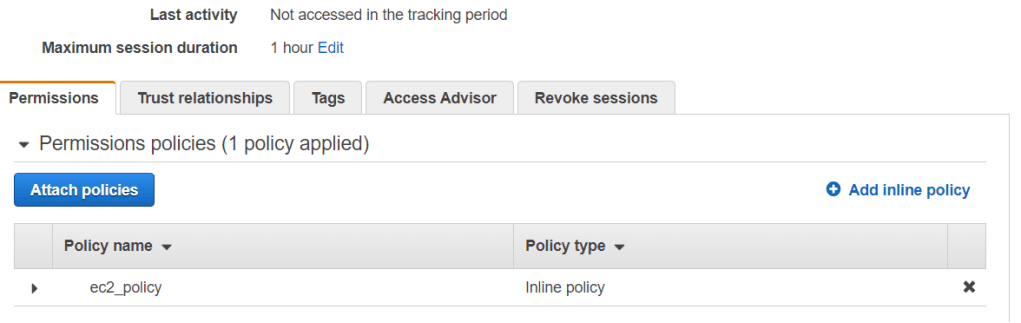

resource "aws_iam_role_policy" "ec2_policy" {
  name = "ec2_policy"
  role = aws_iam_role.ec2_role.id

  # Terraform's "jsonencode" function converts a
  # Terraform expression result to valid JSON syntax.
  policy = data.template_file.s3_ec2_policy.rendered
}

resource "aws_iam_role" "ec2_role" {
  name = "ec2_role"

  assume_role_policy = file("scripts/iam/ec2_assume_role.json")
}

# Attach role to EC2

resource "aws_iam_instance_profile" "ec2_profile" {
  name = "ec2_profile"
  role = aws_iam_role.ec2_role.name
}

ec2_assume_role.json

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "ec2.amazonaws.com"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}

ec2-policy.json (This policy grants s3 list put and get, ec2 full access )

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "Stmt202102171510",
            "Effect": "Allow",
            "Action": [
                "s3:ListStorageLensConfigurations",
                "s3:ListAllMyBuckets",
                "s3:ListJobs",
                "ec2:*"
            ],
            "Resource": "*"
        },
        {
            "Sid": "Stmt202102171530",
            "Effect": "Allow",
            "Action": [
                "s3:PutObject",
                "s3:GetObject",
                "s3:ListBucketMultipartUploads",
                "s3:ListBucketVersions",
                "s3:ListBucket",
                "s3:ListMultipartUploadParts"
            ],
            "Resource": [
                "${s3_bucket_arn}",
                "${s3_bucket_arn}/*"
            ]
        }
    ]
}

create s3 bucket

resource "aws_s3_bucket" "my_bucket" {
  bucket = var.my_app_s3_bucket
  acl    = "private"
  tags = {
    Name        = "My bucket"
    Environment = terraform.workspace
  }
}

ec2-sg.tf

resource "aws_security_group" "ec2_sg" {
  name        = "ec2_sg"
  description = "Allow inbound traffic for web applicaiton on ec2"
  vpc_id      = aws_vpc.mydemodemo.id

  ingress {    description = "web port"
    from_port   = 80    to_port     = 80
    protocol    = "tcp"    cidr_blocks = [aws_vpc.mydemodemo.cidr_block]
  }
  ingress {
    description = "ssh port"
    from_port   = 22    to_port     = 22
    protocol    = "tcp"
    cidr_blocks = [aws_vpc.mydemodemo.cidr_block]
  }

  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }

  tags = {
    Name = "ec2_sg"
  }
}

ec2.tf

locals {
  env_tag = {
    Environment = terraform.workspace
  }
  tags = merge(var.ec2_tags, local.env_tag)
}

resource "aws_instance" "web" {
  count                  = 2
  ami                    = var.ec2_amis[var.region]
  instance_type          = var.instance_type
  subnet_id              = aws_subnet.private.*.id[count.index]
  tags                   = var.ec2_tags
  user_data              = file("scripts/apache.sh")
  iam_instance_profile   = aws_iam_instance_profile.ec2_profile.name
  vpc_security_group_ids = [aws_security_group.ec2_sg.id]
}

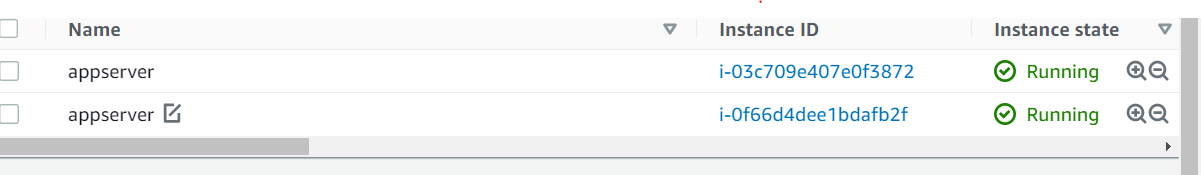

The above script creates ec2 instance and attach iam role, and security group. Let us create application load balancer

alb.tf

# Create Target group

resource "aws_lb_target_group" "myapp" {
  name     = "myapp-lb-tg"
  port     = 80
  protocol = "HTTP"
  vpc_id   = aws_vpc.mydemodemo.id
}

# Attach EC2 instances to traget group

resource "aws_lb_target_group_attachment" "myapp" {
  count            = 2
  target_group_arn = aws_lb_target_group.myapp.arn
  target_id        = aws_instance.web.*.id[count.index]
  port             = 80
}

# Create ALB

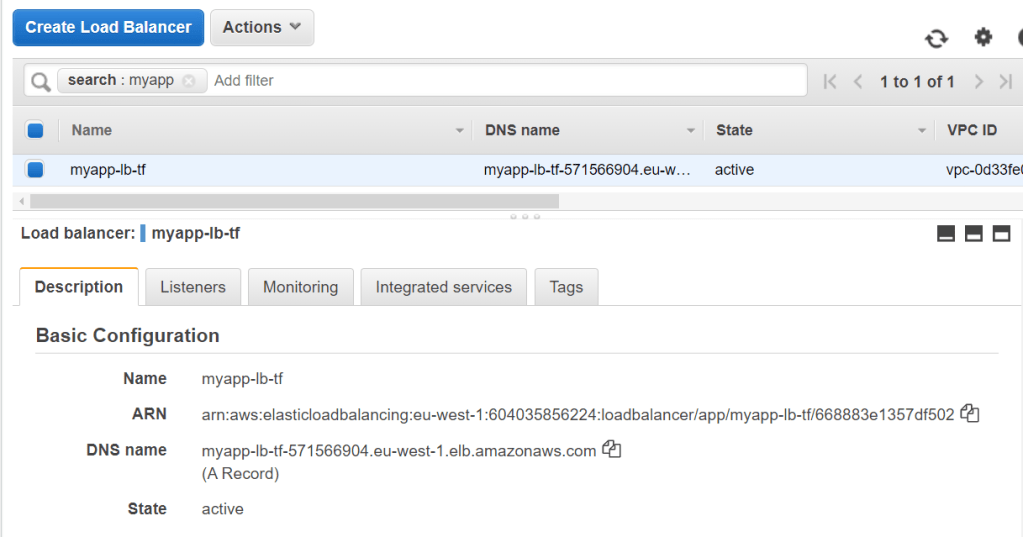

resource "aws_lb" "myapp" {
  name               = "myapp-lb-tf"
  internal           = false
  load_balancer_type = "application"
  security_groups    = [aws_security_group.alb_sg.id]
  subnets            = aws_subnet.public.*.id

  enable_deletion_protection = true

  tags = {
    Environment = terraform.workspace
  }
}

# Configure ALB Listerner

resource "aws_lb_listener" "myapp" {
  load_balancer_arn = aws_lb.myapp.arn
  port              = "80"
  protocol          = "HTTP"

  default_action {
    type             = "forward"
    target_group_arn = aws_lb_target_group.myapp.arn
  }
}

Please note that this is just a demonstration of how to create EC2 and ALB using terraform and i’ve not created certificate for alb example here. You can create ssl cert and attach it to alb.

Now, let us do terraform plan

terraform plan
provider.aws.region
  The region where AWS operations will take place. Examples
  are us-east-1, us-west-2, etc.

  Enter a value: eu-west-1

Refreshing Terraform state in-memory prior to plan...
The refreshed state will be used to calculate this plan, but will not be
persisted to local or remote state storage.

data.template_file.s3_ec2_policy: Refreshing state...
data.aws_availability_zones.azs: Refreshing state...

------------------------------------------------------------------------

An execution plan has been generated and is shown below.
Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # aws_eip.nat will be created
  + resource "aws_eip" "nat" {
      + allocation_id        = (known after apply)
      + association_id       = (known after apply)
      + customer_owned_ip    = (known after apply)
      + domain               = (known after apply)
      + id                   = (known after apply)
      + instance             = (known after apply)
      + network_border_group = (known after apply)
      + network_interface    = (known after apply)
      + private_dns          = (known after apply)
      + private_ip           = (known after apply)
      + public_dns           = (known after apply)
      + public_ip            = (known after apply)
      + public_ipv4_pool     = (known after apply)
      + vpc                  = true
    }

  # aws_iam_instance_profile.ec2_profile will be created
  + resource "aws_iam_instance_profile" "ec2_profile" {
      + arn         = (known after apply)
      + create_date = (known after apply)
      + id          = (known after apply)
      + name        = "ec2_profile"
      + path        = "/"
      + role        = "ec2_role"
      + unique_id   = (known after apply)
    }

  # aws_iam_role.ec2_role will be created
  + resource "aws_iam_role" "ec2_role" {
      + arn                   = (known after apply)
      + assume_role_policy    = jsonencode(
            {
              + Statement = [
                  + {
                      + Action    = "sts:AssumeRole"
                      + Effect    = "Allow"
                      + Principal = {
                          + Service = "ec2.amazonaws.com"
                        }
                    },
                ]
              + Version   = "2012-10-17"
            }
        )
      + create_date           = (known after apply)
      + force_detach_policies = false
      + id                    = (known after apply)
      + max_session_duration  = 3600
      + name                  = "ec2_role"
      + path                  = "/"
      + unique_id             = (known after apply)
    }

  # aws_iam_role_policy.ec2_policy will be created
  + resource "aws_iam_role_policy" "ec2_policy" {
      + id     = (known after apply)
      + name   = "ec2_policy"
      + policy = jsonencode(
            {
              + Statement = [
                  + {
                      + Action   = [
                          + "s3:ListStorageLensConfigurations",
                          + "s3:ListAllMyBuckets",
                          + "s3:ListJobs",
                          + "ec2:*",
                        ]
                      + Effect   = "Allow"
                      + Resource = "*"
                      + Sid      = "Stmt202102171510"
                    },
                  + {
                      + Action   = [
                          + "s3:PutObject",
                          + "s3:GetObject",
                          + "s3:ListBucketMultipartUploads",
                          + "s3:ListBucketVersions",
                          + "s3:ListBucket",
                          + "s3:ListMultipartUploadParts",
                        ]
                      + Effect   = "Allow"
                      + Resource = [
                          + "arn:aws:s3:::terraform-demo-202102171103/*",
                          + "arn:aws:s3:::terraform-demo-202102171103/*/*",
                        ]
                      + Sid      = "Stmt202102171530"
                    },
                ]
              + Version   = "2012-10-17"
            }
        )
      + role   = (known after apply)
    }

  # aws_instance.web[0] will be created
  + resource "aws_instance" "web" {
      + ami                          = "ami-0fc970315c2d38f01"
      + arn                          = (known after apply)
      + associate_public_ip_address  = (known after apply)
      + availability_zone            = (known after apply)
      + cpu_core_count               = (known after apply)
      + cpu_threads_per_core         = (known after apply)
      + get_password_data            = false
      + host_id                      = (known after apply)
      + iam_instance_profile         = "ec2_profile"
      + id                           = (known after apply)
      + instance_state               = (known after apply)
      + instance_type                = "t3.medium"
      + ipv6_address_count           = (known after apply)
      + ipv6_addresses               = (known after apply)
      + key_name                     = (known after apply)
      + outpost_arn                  = (known after apply)
      + password_data                = (known after apply)
      + placement_group              = (known after apply)
      + primary_network_interface_id = (known after apply)
      + private_dns                  = (known after apply)
      + private_ip                   = (known after apply)
      + public_dns                   = (known after apply)
      + public_ip                    = (known after apply)
      + secondary_private_ips        = (known after apply)
      + security_groups              = (known after apply)
      + source_dest_check            = true
      + subnet_id                    = (known after apply)
      + tags                         = {
          + "Name" = "appserver"
        }
      + tenancy                      = (known after apply)
      + user_data                    = "4cf0e018e9af98d1b7ebab63b0c032d4a207b7ef"
      + volume_tags                  = (known after apply)
      + vpc_security_group_ids       = (known after apply)

      + ebs_block_device {
          + delete_on_termination = (known after apply)
          + device_name           = (known after apply)
          + encrypted             = (known after apply)
          + iops                  = (known after apply)
          + kms_key_id            = (known after apply)
          + snapshot_id           = (known after apply)
          + volume_id             = (known after apply)
          + volume_size           = (known after apply)
          + volume_type           = (known after apply)
        }

      + ephemeral_block_device {
          + device_name  = (known after apply)
          + no_device    = (known after apply)
          + virtual_name = (known after apply)
        }

      + metadata_options {
          + http_endpoint               = (known after apply)
          + http_put_response_hop_limit = (known after apply)
          + http_tokens                 = (known after apply)
        }

      + network_interface {
          + delete_on_termination = (known after apply)
          + device_index          = (known after apply)
          + network_interface_id  = (known after apply)
        }

      + root_block_device {
          + delete_on_termination = (known after apply)
          + device_name           = (known after apply)
          + encrypted             = (known after apply)
          + iops                  = (known after apply)
          + kms_key_id            = (known after apply)
          + volume_id             = (known after apply)
          + volume_size           = (known after apply)
          + volume_type           = (known after apply)
        }
    }

  # aws_instance.web[1] will be created
  + resource "aws_instance" "web" {
      + ami                          = "ami-0fc970315c2d38f01"
      + arn                          = (known after apply)
      + associate_public_ip_address  = (known after apply)
      + availability_zone            = (known after apply)
      + cpu_core_count               = (known after apply)
      + cpu_threads_per_core         = (known after apply)
      + get_password_data            = false
      + host_id                      = (known after apply)
      + iam_instance_profile         = "ec2_profile"
      + id                           = (known after apply)
      + instance_state               = (known after apply)
      + instance_type                = "t3.medium"
      + ipv6_address_count           = (known after apply)
      + ipv6_addresses               = (known after apply)
      + key_name                     = (known after apply)
      + outpost_arn                  = (known after apply)
      + password_data                = (known after apply)
      + placement_group              = (known after apply)
      + primary_network_interface_id = (known after apply)
      + private_dns                  = (known after apply)
      + private_ip                   = (known after apply)
      + public_dns                   = (known after apply)
      + public_ip                    = (known after apply)
      + secondary_private_ips        = (known after apply)
      + security_groups              = (known after apply)
      + source_dest_check            = true
      + subnet_id                    = (known after apply)
      + tags                         = {
          + "Name" = "appserver"
        }
      + tenancy                      = (known after apply)
      + user_data                    = "4cf0e018e9af98d1b7ebab63b0c032d4a207b7ef"
      + volume_tags                  = (known after apply)
      + vpc_security_group_ids       = (known after apply)

      + ebs_block_device {
          + delete_on_termination = (known after apply)
          + device_name           = (known after apply)
          + encrypted             = (known after apply)
          + iops                  = (known after apply)
          + kms_key_id            = (known after apply)
          + snapshot_id           = (known after apply)
          + volume_id             = (known after apply)
          + volume_size           = (known after apply)
          + volume_type           = (known after apply)
        }

      + ephemeral_block_device {
          + device_name  = (known after apply)
          + no_device    = (known after apply)
          + virtual_name = (known after apply)
        }

      + metadata_options {
          + http_endpoint               = (known after apply)
          + http_put_response_hop_limit = (known after apply)
          + http_tokens                 = (known after apply)
        }

      + network_interface {
          + delete_on_termination = (known after apply)
          + device_index          = (known after apply)
          + network_interface_id  = (known after apply)
        }

      + root_block_device {
          + delete_on_termination = (known after apply)
          + device_name           = (known after apply)
          + encrypted             = (known after apply)
          + iops                  = (known after apply)
          + kms_key_id            = (known after apply)
          + volume_id             = (known after apply)
          + volume_size           = (known after apply)
          + volume_type           = (known after apply)
        }
    }

  # aws_internet_gateway.igw will be created
  + resource "aws_internet_gateway" "igw" {
      + arn      = (known after apply)
      + id       = (known after apply)
      + owner_id = (known after apply)
      + tags     = {
          + "Name" = "mydemo-igw"
        }
      + vpc_id   = (known after apply)
    }

  # aws_lb.myapp will be created
  + resource "aws_lb" "myapp" {
      + arn                        = (known after apply)
      + arn_suffix                 = (known after apply)
      + dns_name                   = (known after apply)
      + drop_invalid_header_fields = false
      + enable_deletion_protection = true
      + enable_http2               = true
      + id                         = (known after apply)
      + idle_timeout               = 60
      + internal                   = false
      + ip_address_type            = (known after apply)
      + load_balancer_type         = "application"
      + name                       = "myapp-lb-tf"
      + security_groups            = (known after apply)
      + subnets                    = (known after apply)
      + tags                       = {
          + "Environment" = "demo"
        }
      + vpc_id                     = (known after apply)
      + zone_id                    = (known after apply)

      + subnet_mapping {
          + allocation_id        = (known after apply)
          + outpost_id           = (known after apply)
          + private_ipv4_address = (known after apply)
          + subnet_id            = (known after apply)
        }
    }

  # aws_lb_listener.myapp will be created
  + resource "aws_lb_listener" "myapp" {
      + arn               = (known after apply)
      + id                = (known after apply)
      + load_balancer_arn = (known after apply)
      + port              = 80
      + protocol          = "HTTP"
      + ssl_policy        = (known after apply)

      + default_action {
          + order            = (known after apply)
          + target_group_arn = (known after apply)
          + type             = "forward"
        }
    }

  # aws_lb_target_group.myapp will be created
  + resource "aws_lb_target_group" "myapp" {
      + arn                                = (known after apply)
      + arn_suffix                         = (known after apply)
      + deregistration_delay               = 300
      + id                                 = (known after apply)
      + lambda_multi_value_headers_enabled = false
      + load_balancing_algorithm_type      = (known after apply)
      + name                               = "myapp-lb-tg"
      + port                               = 80
      + protocol                           = "HTTP"
      + proxy_protocol_v2                  = false
      + slow_start                         = 0
      + target_type                        = "instance"
      + vpc_id                             = (known after apply)

      + health_check {
          + enabled             = (known after apply)
          + healthy_threshold   = (known after apply)
          + interval            = (known after apply)
          + matcher             = (known after apply)
          + path                = (known after apply)
          + port                = (known after apply)
          + protocol            = (known after apply)
          + timeout             = (known after apply)
          + unhealthy_threshold = (known after apply)
        }

      + stickiness {
          + cookie_duration = (known after apply)
          + enabled         = (known after apply)
          + type            = (known after apply)
        }
    }

  # aws_lb_target_group_attachment.myapp[0] will be created
  + resource "aws_lb_target_group_attachment" "myapp" {
      + id               = (known after apply)
      + port             = 80
      + target_group_arn = (known after apply)
      + target_id        = (known after apply)
    }

  # aws_lb_target_group_attachment.myapp[1] will be created
  + resource "aws_lb_target_group_attachment" "myapp" {
      + id               = (known after apply)
      + port             = 80
      + target_group_arn = (known after apply)
      + target_id        = (known after apply)
    }

  # aws_nat_gateway.ngw will be created
  + resource "aws_nat_gateway" "ngw" {
      + allocation_id        = (known after apply)
      + id                   = (known after apply)
      + network_interface_id = (known after apply)
      + private_ip           = (known after apply)
      + public_ip            = (known after apply)
      + subnet_id            = (known after apply)
      + tags                 = {
          + "Name" = "NatGateway"
        }
    }

  # aws_route_table.privatert will be created
  + resource "aws_route_table" "privatert" {
      + id               = (known after apply)
      + owner_id         = (known after apply)
      + propagating_vgws = (known after apply)
      + route            = [
          + {
              + cidr_block                = "0.0.0.0/0"
              + egress_only_gateway_id    = ""
              + gateway_id                = ""
              + instance_id               = ""
              + ipv6_cidr_block           = ""
              + local_gateway_id          = ""
              + nat_gateway_id            = (known after apply)
              + network_interface_id      = ""
              + transit_gateway_id        = ""
              + vpc_endpoint_id           = ""
              + vpc_peering_connection_id = ""
            },
        ]
      + tags             = {
          + "Name" = "mydemoprivatert"
        }
      + vpc_id           = (known after apply)
    }

  # aws_route_table.publicrt will be created
  + resource "aws_route_table" "publicrt" {
      + id               = (known after apply)
      + owner_id         = (known after apply)
      + propagating_vgws = (known after apply)
      + route            = [
          + {
              + cidr_block                = "0.0.0.0/0"
              + egress_only_gateway_id    = ""
              + gateway_id                = (known after apply)
              + instance_id               = ""
              + ipv6_cidr_block           = ""
              + local_gateway_id          = ""
              + nat_gateway_id            = ""
              + network_interface_id      = ""
              + transit_gateway_id        = ""
              + vpc_endpoint_id           = ""
              + vpc_peering_connection_id = ""
            },
        ]
      + tags             = {
          + "Name" = "mydemopublicrt"
        }
      + vpc_id           = (known after apply)
    }

  # aws_route_table_association.private_subnet_association[0] will be created
  + resource "aws_route_table_association" "private_subnet_association" {
      + id             = (known after apply)
      + route_table_id = (known after apply)
      + subnet_id      = (known after apply)
    }

  # aws_route_table_association.private_subnet_association[1] will be created
  + resource "aws_route_table_association" "private_subnet_association" {
      + id             = (known after apply)
      + route_table_id = (known after apply)
      + subnet_id      = (known after apply)
    }

  # aws_route_table_association.pub_subnet_association[0] will be created
  + resource "aws_route_table_association" "pub_subnet_association" {
      + id             = (known after apply)
      + route_table_id = (known after apply)
      + subnet_id      = (known after apply)
    }

  # aws_route_table_association.pub_subnet_association[1] will be created
  + resource "aws_route_table_association" "pub_subnet_association" {
      + id             = (known after apply)
      + route_table_id = (known after apply)
      + subnet_id      = (known after apply)
    }

  # aws_s3_bucket.my_bucket will be created
  + resource "aws_s3_bucket" "my_bucket" {
      + acceleration_status         = (known after apply)
      + acl                         = "private"
      + arn                         = (known after apply)
      + bucket                      = "terraform-demo-202102171103"
      + bucket_domain_name          = (known after apply)
      + bucket_regional_domain_name = (known after apply)
      + force_destroy               = false
      + hosted_zone_id              = (known after apply)
      + id                          = (known after apply)
      + region                      = (known after apply)
      + request_payer               = (known after apply)
      + tags                        = {
          + "Environment" = "demo"
          + "Name"        = "My bucket"
        }
      + website_domain              = (known after apply)
      + website_endpoint            = (known after apply)

      + versioning {
          + enabled    = (known after apply)
          + mfa_delete = (known after apply)
        }
    }

  # aws_security_group.alb_sg will be created
  + resource "aws_security_group" "alb_sg" {
      + arn                    = (known after apply)
      + description            = "Allow inbound traffic for web applicaiton on ec2"
      + egress                 = (known after apply)
      + id                     = (known after apply)
      + ingress                = [
          + {
              + cidr_blocks      = [
                  + "0.0.0.0/0",
                ]
              + description      = "alb web port"
              + from_port        = 80
              + ipv6_cidr_blocks = []
              + prefix_list_ids  = []
              + protocol         = "tcp"
              + security_groups  = []
              + self             = false
              + to_port          = 80
            },
        ]
      + name                   = "alb_sg"
      + owner_id               = (known after apply)
      + revoke_rules_on_delete = false
      + tags                   = {
          + "Name" = "alb_sg"
        }
      + vpc_id                 = (known after apply)
    }

  # aws_security_group.ec2_sg will be created
  + resource "aws_security_group" "ec2_sg" {
      + arn                    = (known after apply)
      + description            = "Allow inbound traffic for web applicaiton on ec2"
      + egress                 = [
          + {
              + cidr_blocks      = [
                  + "0.0.0.0/0",
                ]
              + description      = ""
              + from_port        = 0
              + ipv6_cidr_blocks = []
              + prefix_list_ids  = []
              + protocol         = "-1"
              + security_groups  = []
              + self             = false
              + to_port          = 0
            },
        ]
      + id                     = (known after apply)
      + ingress                = [
          + {
              + cidr_blocks      = [
                  + "192.168.50.0/24",
                ]
              + description      = "ssh port"
              + from_port        = 22
              + ipv6_cidr_blocks = []
              + prefix_list_ids  = []
              + protocol         = "tcp"
              + security_groups  = []
              + self             = false
              + to_port          = 22
            },
          + {
              + cidr_blocks      = [
                  + "192.168.50.0/24",
                ]
              + description      = "web port"
              + from_port        = 80
              + ipv6_cidr_blocks = []
              + prefix_list_ids  = []
              + protocol         = "tcp"
              + security_groups  = []
              + self             = false
              + to_port          = 80
            },
        ]
      + name                   = "ec2_sg"
      + owner_id               = (known after apply)
      + revoke_rules_on_delete = false
      + tags                   = {
          + "Name" = "ec2_sg"
        }
      + vpc_id                 = (known after apply)
    }

  # aws_subnet.private[0] will be created
  + resource "aws_subnet" "private" {
      + arn                             = (known after apply)
      + assign_ipv6_address_on_creation = false
      + availability_zone               = "eu-west-1a"
      + availability_zone_id            = (known after apply)
      + cidr_block                      = "192.168.50.128/26"
      + id                              = (known after apply)
      + ipv6_cidr_block_association_id  = (known after apply)
      + map_public_ip_on_launch         = false
      + owner_id                        = (known after apply)
      + tags                            = {
          + "Name" = "PrivateSubnet-1"
        }
      + vpc_id                          = (known after apply)
    }

  # aws_subnet.private[1] will be created
  + resource "aws_subnet" "private" {
      + arn                             = (known after apply)
      + assign_ipv6_address_on_creation = false
      + availability_zone               = "eu-west-1b"
      + availability_zone_id            = (known after apply)
      + cidr_block                      = "192.168.50.192/26"
      + id                              = (known after apply)
      + ipv6_cidr_block_association_id  = (known after apply)
      + map_public_ip_on_launch         = false
      + owner_id                        = (known after apply)
      + tags                            = {
          + "Name" = "PrivateSubnet-2"
        }
      + vpc_id                          = (known after apply)
    }

  # aws_subnet.public[0] will be created
  + resource "aws_subnet" "public" {
      + arn                             = (known after apply)
      + assign_ipv6_address_on_creation = false
      + availability_zone               = "eu-west-1a"
      + availability_zone_id            = (known after apply)
      + cidr_block                      = "192.168.50.0/26"
      + id                              = (known after apply)
      + ipv6_cidr_block_association_id  = (known after apply)
      + map_public_ip_on_launch         = true
      + owner_id                        = (known after apply)
      + tags                            = {
          + "Name" = "PublicSubnet-1"
        }
      + vpc_id                          = (known after apply)
    }

  # aws_subnet.public[1] will be created
  + resource "aws_subnet" "public" {
      + arn                             = (known after apply)
      + assign_ipv6_address_on_creation = false
      + availability_zone               = "eu-west-1b"
      + availability_zone_id            = (known after apply)
      + cidr_block                      = "192.168.50.64/26"
      + id                              = (known after apply)
      + ipv6_cidr_block_association_id  = (known after apply)
      + map_public_ip_on_launch         = true
      + owner_id                        = (known after apply)
      + tags                            = {
          + "Name" = "PublicSubnet-2"
        }
      + vpc_id                          = (known after apply)
    }

  # aws_vpc.mydemodemo will be created
  + resource "aws_vpc" "mydemodemo" {
      + arn                              = (known after apply)
      + assign_generated_ipv6_cidr_block = false
      + cidr_block                       = "192.168.50.0/24"
      + default_network_acl_id           = (known after apply)
      + default_route_table_id           = (known after apply)
      + default_security_group_id        = (known after apply)
      + dhcp_options_id                  = (known after apply)
      + enable_classiclink               = (known after apply)
      + enable_classiclink_dns_support   = (known after apply)
      + enable_dns_hostnames             = true
      + enable_dns_support               = true
      + id                               = (known after apply)
      + instance_tenancy                 = "default"
      + ipv6_association_id              = (known after apply)
      + ipv6_cidr_block                  = (known after apply)
      + main_route_table_id              = (known after apply)
      + owner_id                         = (known after apply)
      + tags                             = {
          + "Environment" = "demo"
          + "Name"        = "mydemodemo"
        }
    }

Plan: 27 to add, 0 to change, 0 to destroy.

Changes to Outputs:
  + nat_gateway_ip = (known after apply)

------------------------------------------------------------------------

Note: You didn't specify an "-out" parameter to save this plan, so Terraform
can't guarantee that exactly these actions will be performed if
"terraform apply" is subsequently run.

If you can see that plan is creating ec2, ec2 roles, ec2 security groups, attaching ec2_role to ec2 instance, creating target groups, alb, listerners. Let us apply terraform

That’s it. if you see that the ec2 and alb’s are created. you can customize the script based on your requirement.

Hope you enjoyed the post.

Cheers

Ramasankar Molleti

LinkedIn

Published by Ramasankar

Hi. I’m Ramasankar Molleti. I’m a passionate IT professional with over 14 years of experience on providing solutions for customers who are looking on cloud computing, Database Migration, Development, and Big Data. I love learning new technologies and share my knowledge to community. I am currently working as Sr Cloud Architect with focus on Cloud Infrastructure, Big Data. I work with developers to architect, build, and manage cloud infrastructure, and services. I have deeep knowledge and experience on working with various database platforms such as MS SQL Server, PostgeSQL, Oracle, MongoDB, Redshift, Dyanamodb, Amazon Aurora. I worked as Database Engineer, Database Administrator, BI Developer and successfully transit myself into Cloud Architect with focus on Cloud infranstructure and Big Data. I live in USA and put my thoughts down on this blog. If you want to get in touch with me, contact me on my Linkedin here: https://www.linkedin.com/in/ramasankar-molleti-23b13218/ My Certifications: Amazon: AWS Certified Solutions Architect – Professional AWS Certified DevOps Engineer – Professional certificate AWS Certified Big Data – Specialty AWS Certified Security – Specialty certificate AWS Certified Advanced Networking – Specialty certificate AWS Certified Solutions Architect – Associate Microsoft: Microsoft® Certified Solutions Associate: SQL Server 2012/2014 Microsoft Certified Professional Microsoft® Certified IT Professional: Database Administrator 2008 Microsoft® Certified Technology Specialist: SQL Server 2008, Implementation and Maintenance

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out /  Change )

Google photo

You are commenting using your Google account. Log Out /  Change )

Twitter picture

You are commenting using your Twitter account. Log Out /  Change )

Facebook photo

You are commenting using your Facebook account. Log Out /  Change )

Connecting to %s

%d bloggers like this:
